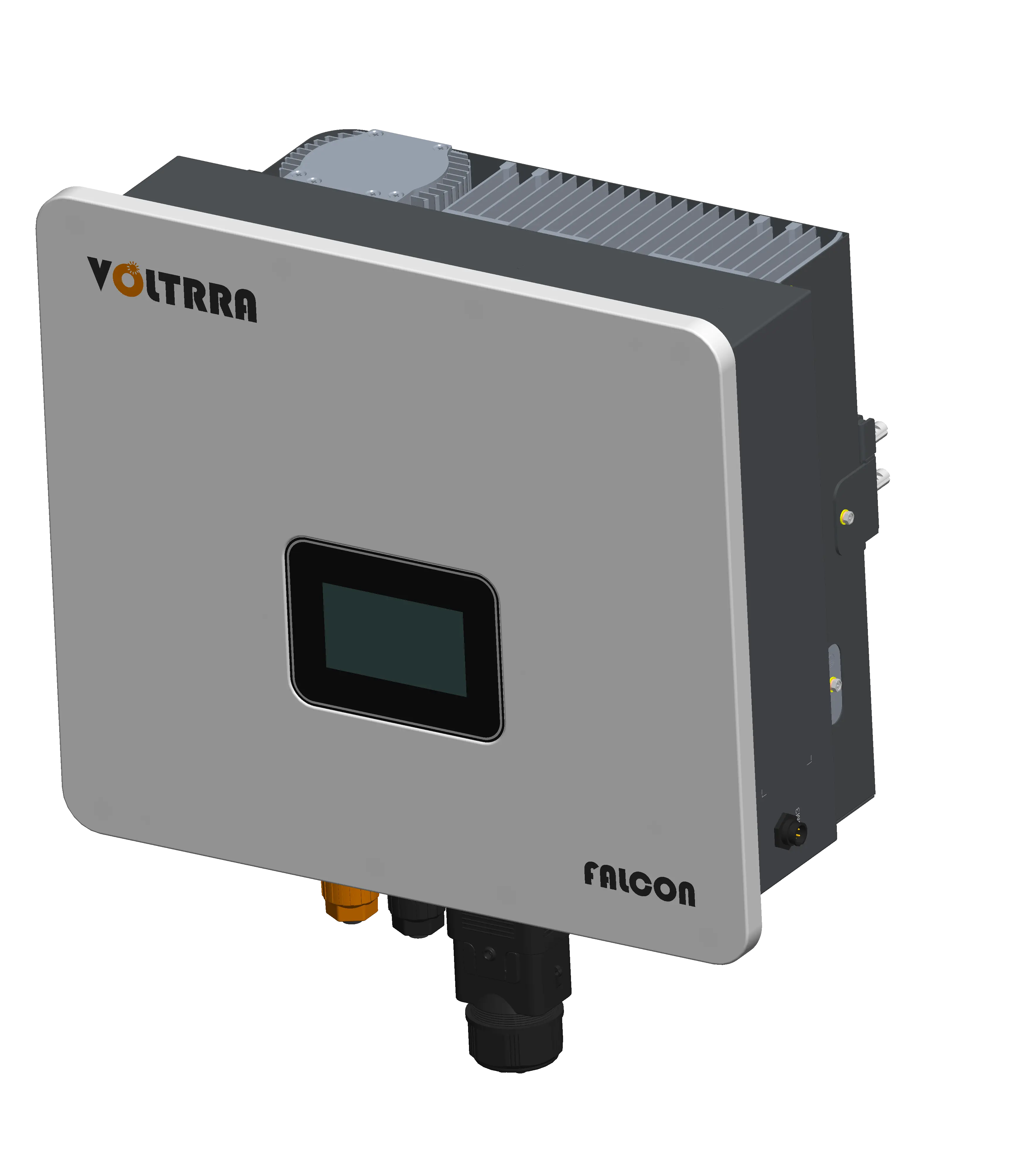

Single Phase Energy Storage Inverters
8kW & 10kW
Supports on-grid and off-grid AC coupling, three-phase compatibility, and multi-machine parallel operation. Features intelligent load management (customizable) and remote BMS upgrades for lithium battery energy storage systems.
Product Highlights
Safe and Reliable
Passed ENIEC 61000-6-1:2019, EN IEC 61000-6-3:2021; EN 62109-1:2010; EN 62109-2:2011 test certification.
Friendly and Flexible
Support multi-machine parallel connection. Compatible with a variety of battery connections such as lead-acid and lithium-ion batteries.
Intelligent and friendly
Support intelligent load management (customized), Support BMS remote upgrade function (customized).
Choose our benefits
Reduce the use of fossil fuels and be more environmentally friendly
Reduce the use of fossil fuels and be more environmentally friendly
Continuous, stable, and reliable power supply
PV expansion will be more convenient in the future
Technical Specifications
| Model | FALCON 8 | FALCON 10 |
|---|---|---|
| PV input data | ||
| Max. PV input power (kW) | 12 | 15 |
| Max. PV input voltage (V) | 550 | 550 |
| Start-up voltage (V) | 100 | 100 |
| MPPT voltage range (V) | 100~430 | 100~430 |
| Rated PV input voltage (V) | 360 | 360 |
| No. of MPPT trackers | 2 | 2 |
| No. of strings per MPPT tracker | 1/2 | 1/2 |
| Max. input current per MPPT (A) | 16/16+16 | 16/16+16 |
| Max. short-circuit current per MPPT (A) | 24/24/24 | 24/24/24 |
| Battery input data | ||
| Battery type | Lithium-ion / Lead-acid | |
| Max. charge / discharge power (kW) | 8 | 10 |
| Battery voltage range (V) | 40~58 | |
| Rated battery voltage (V) | 48 | |
| Max. charging / discharging current (A) | 160/160 | 200/200 |
| BMS communication | CAN | |
| AC output data (grid side) | ||
| Rated output power (kW) | 8 | 10 |
| Max. apparent output power (kVA) | 8.8 | 10 |
| Max. apparent input power (kVA) | 8.8 | 10 |
| Rated grid voltage (V) | 230 | |
| Grid voltage range (V) | 176~270 | |
| Rated grid frequency (Hz) | 50/60 | |
| Grid frequency range (Hz) | 47~61 | |
| Rated output current (A) | 34.8 | 43.5 |
| Max. AC output current (A) | 34.8 | 43.5 |
| Max. apparent input current (A) | 34.8 | 43.5 |
| Power factor | >1 (0.8 leading ~ 0.8 lagging) | |
| Max. grid passthrough current (A) | 43.5 | |
| THDi | ＜3% | |
| Grid type | L+N+PE | |
| AC output data (back-up) | ||
| Rated output power (kW) | 8 | 10 |
| Max. apparent output power (kVA) | 8.8 | 10 |
| Rated output voltage (V) | 230 | |
| Rated output frequency (Hz) | 50/60 | |
| Rated output current (A) | 34.8 | 43.5 |
| Max. AC output current (A) | 38.3 | 43.5 |
| Peak output power | ≥110%, 10mins; ≥120%, 1min; ≥130%, 1s; ≥150%, 100ms | |
| Back-up switch time (ms) | <20 | |
| THDu | <3% | |
| Protection | ||
| Supported protection | PV reverse polarity protection, Anti-islanding protection, Ground fault protection, Leakage current protection, Insulation resistance detection, Backup output short circuit protection, AC under-voltage protection, AC output over-current protection, AC over-voltage protection | |
| Surge protection | DC Type III / AC Type III | |
| Over voltage category | DC Type III / AC Type III | |
| Certifications and standards | ||
| Certificates | ENIEC 61000-6-1:2019, EN IEC 61000-6-3:2021; EN 62109-1:2010; EN 62109-2:201 | |
| General data | ||
| Ingress protection | IP66 | |
| Operating temperature range (℃) | -25~+60 | |
| Cooling | Fan cooling | |
| Relative humidity | 0-95% (non-condensing) | |
| Operating altitude (m) | 0~2,000 (derating over 2,000) | |
| Dimensions W*D*H (mm) | 486×231×530 | |
| Weight (kg) | 25.8 | |
| Inverter topology | Non-isolated | |
| Noise emission (dB) | <55 | |
| PV connection terminals | MC4 | |
| Display and communication | ||
| Display | LCD | |
| Communication | RS485/CAN | |
