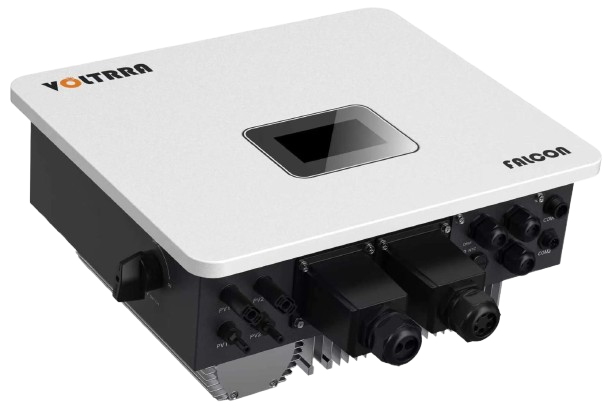

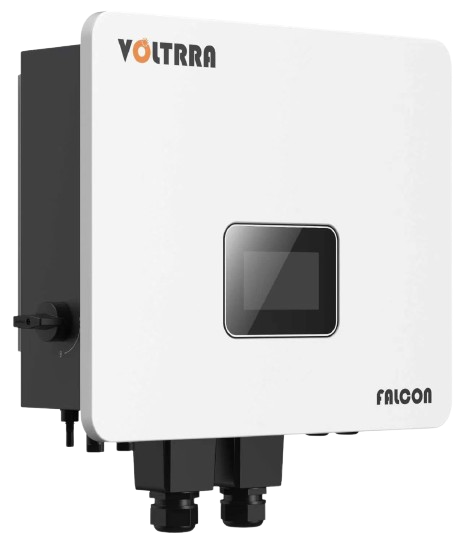

Falcon 6 Single Phase Energy Storage Inverter
6kW Power Output
The Falcon 6 is an advanced 6kW single-phase energy storage inverter built for extreme reliability. Features IP66 weatherproof rating, support for on/off-grid AC coupling, multi-machine parallel operation, intelligent load management, and remote BMS upgrades for lithium battery energy storage systems.
Product Highlights
Safe and Reliable
IP66 rated enclosure for indoor and outdoor installations. Certified under ENIEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN 62109-1:2010, and EN 62109-2:2011 standard compliance.
Friendly and Flexible
Supports multi-machine parallel connection and three-phase output configuration. Compatible with Lithium-ion and Lead-acid battery storage systems.
Intelligent & Efficient
Includes Solarman app monitoring, customizable intelligent load management, and remote BMS upgrade support for high-performance operation.
Choose our benefits
Reduce reliance on grid power with high-efficiency solar harvesting
Reduce electricity bills with smart energy management
Continuous, stable, and reliable power supply with <10ms switchover
PV expansion will be more convenient in the future
Technical Specifications
| Model | FALCON 6 |
|---|---|
| PV input data | |
| Max. PV input power (kW) | 9 |
| Max. PV input voltage (V) | 550 |
| Start-up voltage (V) | 100 |
| MPPT voltage range (V) | 100~430 |
| Rated PV input voltage (V) | 360 |
| No. of MPPT trackers | 2 |
| No. of strings per MPPT tracker | 1/1 |
| Max. input current per MPPT (A) | 16/16 |
| Max. short-circuit current per MPPT (A) | 24/24 |
| Battery input data | |
| Battery type | Lithium-ion / Lead-acid |
| Max. charge / discharge power (kW) | 6 |
| Battery voltage range (V) | 40~58 |
| Rated battery voltage (V) | 48 |
| Max. charging / discharging current (A) | 120/120 |
| Rated charge / discharge current (A) | 120/120 |
| Battery charging strategy | Self-adaption to BMS |
| BMS communication | CAN |
| AC output data (grid side) | |
| Rated output power (kW) | 6 |
| Max. apparent output power (kVA) | 6.6 |
| Max. apparent input power (kVA) | 6.6 |
| Rated grid voltage (V) | 230 |
| Grid voltage range (V) | 176~270 |
| Rated grid frequency (Hz) | 50/60 |
| Grid frequency range (Hz) | 47~61 |
| Rated output current (A) | 26.1 |
| Max. AC output current (A) | 28.7 |
| Max. apparent input current (A) | 28.7 |
| Power factor | >1 (0.8 leading ~ 0.8 lagging) |
| Max. grid passthrough current (A) | 39.1 |
| THDi | <3% |
| Grid type | L+N+PE |
| AC output data (back-up) | |
| Rated output power (kW) | 6 |
| Max. apparent output power (kVA) | 6.6 |
| Rated output voltage (V) | 230 |
| Rated output frequency (Hz) | 50/60 |
| Rated output current (A) | 26.1 |
| Max. AC output current (A) | 28.7 |
| Peak output power | ≥110%, 10mins; ≥120%, 1min; ≥130%, 1s; ≥150%, 100ms |
| Back-up switch time (ms) | <20 |
| THDu | <3% |
| Protection | |
| Supported protection | PV reverse polarity protection, Anti-islanding protection, Ground fault protection, Leakage current protection, Insulation resistance detection, Backup output short circuit protection, AC under-voltage protection, AC output over-current protection, AC over-voltage protection |
| Surge protection | DC Type III / AC Type III |
| Over voltage category | DC Type III / AC Type III |
| Certifications and standards | |
| Certificates | ENIEC 61000-6-1:2019, EN IEC 61000-6-3:2021; EN 62109-1:2010; EN 62109-2:2011 |
| General data | |
| Ingress protection | IP66 |
| Operating temperature range (℃) | -25~+60 |
| Cooling | Natural convection |
| Relative humidity | 0-95% (non-condensing) |
| Operating altitude (m) | 0~2,000 (derating over 2,000) |
| Dimensions W*D*H (mm) | 476×215×477 (without generator port); 476×215×510 (with generator port) |
| Weight (kg) | 20.5 (without generator port); 20.7 (with generator port) |
| Inverter topology | Non-isolated |
| Noise emission (dB) | <35 |
| PV connection terminals | MC4 |
| Display and communication | |
| Display | LCD |
| Communication | RS485/CAN |
